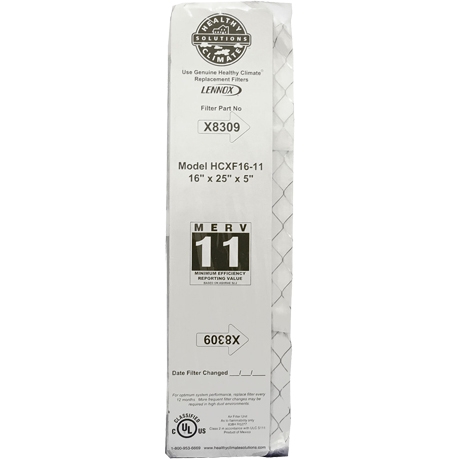

Factory original accordian-style filter from Lennox. This MERV 11 filter captures particles down to .3 microns. This expandable media air filter ships like a collapsed accordian and is expanded into existing frame. Cartridge can last up to one year, though product replacement life cycle depends on the individual conditions and needs of your home.
- Captures dust mites, pollen, mold spores, pet dander and other contaminants down to 0.3 microns
- Synthetic media offers large surface area for maximum dirt holding capacities with minimum air resistance
- Replaces part number HCXF20-10 / catalog number X8309
- HCC16-28 and HC10 Healthy Climate Media Air Cleaner Cabinets
- Nominal Dimensions: 16" x 25" x 6"
- NOTE: Requires part # X8303 plastic frame (not included)
- Factory original, OEM product
Approximately 15-3/4" (15.75") x 24-3/4" (24.75") x 4-3/8" (4.375")
Lennox X8309 Pleated Media Filter Compatible Model/Part Numbers:
- X8309, X8309-1, X6670, HC10, HCF16-10, HCFX16-10, HCFX16-11, HCXF20-10, HCC16-28
- F25A1043, F25F1042, F35F1008, F100F1012, F150E1026, F150E1029, FC35A1001, FC100A1029
- EZXCAB016, MACA016, MPKA016, FILCAB016
- FILBBCAR0016, FILCCCAR0016, FILXXCAR0016
Lennox 16" x 25" x 5" Pleated AC & Furnace Filter is also known as:
- Lennox X8309 Expandable Filter MERV 10 16x25x5 Filter.
- Lennox X8309 MERV 11 Expandable filter - 16 x 25 x 5 inches.
- Healthy Climate HCXF16-11 Expandable Filter Media MERV 11 16” x 25” x 5”.
Other Manufacturer Part Numbers: DLXX8309
