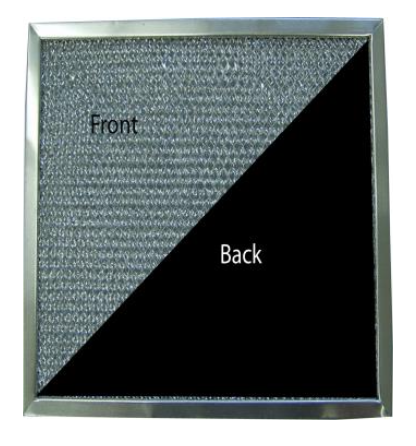

Construction:
Framed with formed aluminum channel connected with
rivets. Filter media is comprised of multiple layers
of expanded aluminum bonded together to form
one contiguous filter pad with a layer of nonwoven poly pad
impregnated with activated charcoal.
Aluminum / Carbon combo filters are not washable.
Maximum Temperature: 225 degrees F.
Uses Include, but are not limited to:
range hoods & microwaves, or
anywhere grease and odor extraction are needed.
Life expectancy varies greatly based on use.
In a range hood expect 3-12 months on average
These aluminum and Carbon filters are custom made to your specific size. We can fabricate almost any size aluminum filter in several thicknesses.
These are Custom size air filters that are built to your exact size specifications. As a result, these filters may not be returned for refund or credit.
Please MEASURE your current air filter in order to get the exact dimensions.
When measuring for custom sized filters, they need to be measured from the outside edge of the frame. The frame border is included in the overall dimensions.
Custom sizes from 3 to 60 inches.
Custom dimensions up to 30" x 60"
Frame Thickness Availability:
3/32" ("flat")
1/4" (3/16" actual)
3/8" (5/16" actual)
1/2" (7/16" actual)
NOTE: When measuring for custom sized filters, they need to be measured from the outside edge of the frame. The frame border is included in the overall dimensions.
Tension springs can be added for an extra $5.00.
