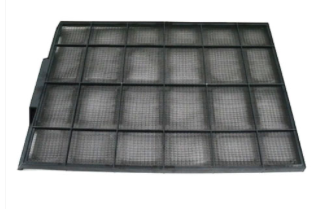

Replacement PreFilter for Trane CleanEffects
This woven mesh prefilter will catch all the large particles from entering your CleanEffects 24" Downflow Furnace cabinet and prematurely filling the collection cells inside the unit. Approximate dimensions -19-7/8"x24-1/8"
Vacuuming is the preferred method to clean the PREFILTER and COLLECTION CELLS. It is recommended that the PRE-FILTER and the COLLECTION CELLS be vacuumed outside the home to ensure particles on the filters are not reintroduced into the air. Persons highly sensitive to the collected particles should wear appropriate respiratory protection while cleaning.
The air cleaner is factory set to notify the home owner to clean the PRE-FILTER every two months [10 weeks] of actual run time of the air cleaner. This notification can be changed by the installer/home owner to 1 month or 3 months [5 to 15 weeks] depending on the conditions in the home (pets, smokers, etc.).
This prefilter will fit the CleanEffects Cabinet models listed below.
AFD24DCLFR000D
ATFD24DALFR000AB
AFD24DALFR000CD
AFD24DALFR000A
ATFD24DALUPGRDCD
TFD24DALFR000BC
AFD24DALFR000BC
TFD24DALFR000AA
TFD24DALUPGRDCC
AFD24DALFR000CC
AFD24DALFH000BB
AFD24DALFR000AB
AFD24DALUPGRDAA
TFD24DALUPGRDAA
AFD24DCLFR000FA
TFD24DCLFR000CE
TFD24DALFR000BB
TFD24DCLFR000CD
AFD24DALFR000BB
TFD24DCLFR000FA
AFD24DCLFR000EC
TFD24DALFH000BB
AFD24DALUPGRDCD
TFD24DCLFR000DA
TFD24DALUPGRDAB
AFD24DALUPGRDAB
AFD24DCLFR000CD
AFD24DALUPGRDCC
TFD24DALFR000CC
TFD24DALUPGRDAC
AFD24DCLFR000EA
TFD24DALFR000CD
TFD24DCLFR000EA
TFD24DCLFR000EC
AFD24DCLFR000CE
AFD24DCLFR000EB
AFD24DALFH000BC
AFD24DALUPGRDAC
TFD24DCLFR000EB
FLR6462
FLR06462
DTRFLR06462
