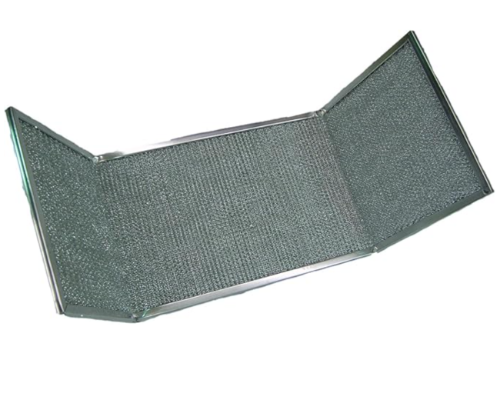

Constructed of layered, expanded, bonded, aluminum mesh in an aluminum frame, this Winged Range Hood washable filter serves many purposes.
Note: This filter ships flat, with the bend points compressed.
This filter measures overall 15-3/4" x 16-3/4", the dimensions of the wings on the end are 3-1/4 x 15-3/4, and the center flat portion is 10-1/4 x 15-3/4. The frame of this filter is 3/8" thick, and has mounting holes through the frame on the 10-1/4 flat section.
Compatible replacement for:
KA130 - KA170 - KA190 - KA240 - LF16 - LFCU12 - LFCU13 - LFCU17 - LFCU19
AMF # RWF1501
DuraFlow # AW19394
